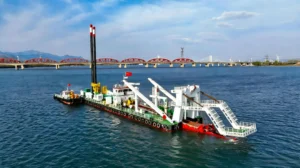

18 Inch Cutter Suction Dredger
¥4,300,000.00
18 Inch Cutter Suction Dredger Premium (450mm) | Heavy-Duty Dredging Equipment for Large-Scale Global Projects
Model: CSD-450 | 450mm Cutter Suction Dredger
Product Overview
The 18 inch cutter suction dredger (450mm discharge diameter) is a flagship heavy-duty dredging vessel engineered for large-scale, high-volume projects including deep-sea port construction, large river dredging, massive sand and gravel extraction, coastal land reclamation, reservoir desilting, and environmental sediment removal in demanding marine and inland waterways. As a core product in the heavy-duty dredging category, it addresses the growing global demand for efficient, durable equipment driven by infrastructure booms in Southeast Asia, Africa, and Latin America—regions projected to account for 68% of the global dredging market growth by 2031 .(18 Inch Cutter Suction Dredger Premium)
Compliant with DIN EN ISO 8384:2020 and IMO MARPOL environmental standards, this non-self-propelled dredger integrates cutting-edge hydraulic technology, high-pressure slurry pumping systems, and intelligent PLC control to deliver unmatched performance in extreme conditions. It bridges the gap between mid-size 14-inch models and ultra-large 24-inch dredgers, offering the optimal balance of power, efficiency, and operational flexibility for contractors, mining conglomerates, and government water conservancy departments undertaking multi-million-dollar projects.(18 Inch Cutter Suction Dredger Premium)
Built for 24/7 continuous operation, the 18 inch dredger features a reinforced marine-grade steel hull, dual high-power diesel engines (Cummins/Weichai/Caterpillar options), and a high-chrome alloy dredge pump capable of handling compacted silt, hard clay, gravel, and loose rock with compressive strength up to 80 Mpa . With a clear water flow rate of 3,500 m³/h and solid production capacity of 700 m³/h, it completes large-scale projects in significantly shorter timeframes compared to smaller models, delivering a higher return on investment for time-sensitive contracts . Its modular design facilitates global transportation via specialized barges or container ships, with on-site assembly and commissioning support available through a network of regional service centers across 50+ countries.(18 Inch Cutter Suction Dredger Premium)
Core Technical Specifications (18 Inch Cutter Suction Dredger Premium)
- Suction Pipe Diameter: 600mm (24 inch) | Discharge Pipe Diameter: 450mm (18 inch)
- Dredging Depth: Min 2.0m – Max 18m (extendable to 25m with optional submersible booster pump)
- Clear Water Flow Capacity: 3,000–3,500 m³/h (standard configuration)
- Solid Production Capacity: 600–700 m³/h (sand/sediment); up to 850 m³/h with optimized cutter head
- Max Discharge Distance: 1,500m (single pump); up to 4,000m with dual booster pump stations
- Overall Dimensions: 38.0m (Length) × 7.5m (Breadth) × 2.2m (Depth)
- Loaded Draft: 2.0m
- Main Engine Power: 895KW (1,200HP) @ 1800RPM
- Auxiliary Engine Power: 298KW (400HP) @ 1800RPM
- Dredge Pump: Horizontal centrifugal slurry pump (450–550KW shaft power) with high-chrome alloy impeller (65 HRC hardness)
- Cutter Head: Hydraulic-driven crown type (φ1,800mm, 170KW power) with 40 replaceable tungsten carbide teeth
- Positioning System: Twin hydraulic spuds (φ610mm, L=19m) + 6-point anchoring system with winch control
- Hull Material: Q345B marine-grade steel with 5-layer anti-corrosion coating (zinc anode + epoxy primer + intermediate coat + finish coat + anti-fouling paint)
- Control System: Siemens PLC + touchscreen HMI + remote monitoring capability (4G/WiFi enabled)
- Total Weight: ~180–200 tons | Fuel Tank Capacity: 5,000L
- Fuel Consumption: 160 L/h (main engine) + 53 L/h (auxiliary engine)
- Operating Crew: 2–3 operators (supports semi-autonomous operation with GPS/DGPS integration)
- Max Solid Particle Size: 125mm (passable through suction pipe)
-
18 Inch Cutter Suction Dredger
Key Features & Performance Advantages （18 Inch Cutter Suction Dredger Premium）
1. Unmatched Cutting & Pumping Power
The 18 inch cutter suction dredger is equipped with a high-torque hydraulic cutter head powered by a 170KW motor, capable of rotating at 25–40 RPM to break through dense sediment and soft rock . The 40 replaceable tungsten carbide teeth—arranged in a spiral pattern—ensure uniform cutting and minimal wear, even when processing abrasive materials like quartz sand. Unlike standard models, this cutter head features a hydraulic pressure relief system that automatically adjusts torque when encountering hard obstacles, preventing mechanical damage and reducing downtime.（18 Inch Cutter Suction Dredger Premium）
Paired with the heavy-duty centrifugal slurry pump, the system maintains a slurry concentration of 30–35%—significantly higher than the industry average of 20–25%—ensuring efficient material transportation without excessive water dilution . The pump’s high-chrome alloy impeller and volute are designed to withstand continuous abrasion, with a service life of 8,000+ operating hours—50% longer than conventional pump components. A built-in anti-clogging system monitors flow rates and automatically reverses pump rotation if blockages are detected, minimizing operational interruptions in debris-laden environments.(18 Inch Cutter Suction Dredger Premium)
2. Robust Construction for Extreme Environments
Engineered to withstand the harshest marine and inland conditions, the hull is constructed from thickened Q345B marine steel with a minimum plate thickness of 12mm, reinforced at stress points with additional steel gussets. The 5-layer anti-corrosion coating system provides long-term protection against saltwater corrosion, freshwater fouling, and chemical erosion—critical for operations in coastal areas and industrial waterways . Zinc anodes are strategically placed along the hull to prevent galvanic corrosion, extending the vessel’s service life to 15+ years with proper maintenance.(18 Inch Cutter Suction Dredger Premium)
All key components—including the main engine, hydraulic valves (Rexroth/Parker), and electrical systems (Schneider)—are sourced from global premium brands to ensure reliability in remote locations. The engine compartment is equipped with a fire suppression system, sound insulation, and forced ventilation to maintain optimal operating temperatures and protect personnel. The dredger’s modular design allows for easy access to critical components, with removable panels and integrated lifting points facilitating maintenance and repairs in the field.
Key Features & Performance Advantages （18 Inch Cutter Suction Dredger Premium）
1. Intelligent Control & Precision Positioning
Featuring a Siemens PLC control system and touchscreen HMI, the 18 inch dredger provides real-time monitoring of 20+ key parameters, including engine load, pump pressure, slurry flow rate, dredging depth, and cutter head temperature. Operators can pre-program dredging paths using GPS/DGPS coordinates, enabling semi-autonomous operation that reduces human error and ensures uniform depth control . The system also generates automated performance reports, allowing project managers to track productivity, fuel consumption, and maintenance needs remotely via a cloud-based platform.(18 Inch Cutter Suction Dredger)
The dual hydraulic spud system—with 19m-long spuds (φ610mm)—delivers exceptional stability during dredging, even in moderate sea conditions (up to Beaufort 4) . The 6-point anchoring system, paired with hydraulic winches, enables precise lateral and longitudinal movement, allowing the dredger to cover large areas efficiently without repositioning. For complex projects, an optional dynamic positioning system (DPS) can be integrated, using GPS and gyroscopic sensors to maintain position within ±0.5m accuracy—critical for port construction and narrow channel dredging.(18 Inch Cutter Suction Dredger)
2. Environmental Compliance & Sustainability
Aligning with global environmental regulations, the 18 inch cutter suction dredger incorporates multiple eco-friendly features to minimize ecological impact. The closed-loop hydraulic system prevents oil leakage, with a built-in oil filtration and recycling unit that reduces waste and meets IMO MARPOL standards . A low-emission main engine (Euro V/US EPA Tier 4 compliant) reduces greenhouse gas emissions by 30% compared to older models, while a sound-dampening design limits operational noise to 75 dB(A) at 10m—protecting aquatic life and nearby communities.(18 Inch Cutter Suction Dredger Premium)
For environmental dredging projects, the dredger can be equipped with a turbidity curtain system that contains sediment plumes, preventing water quality degradation. An optional sediment classification system separates pollutants from clean sediment, allowing for safe disposal or reuse of materials—supporting circular economy principles in coastal restoration and lake remediation projects .(18 Inch Cutter Suction Dredger Premium)
3. Global Deployability & Cost Efficiency
Despite its heavy-duty design, the 18 inch dredger features a modular structure that allows disassembly into 12–15 standard shipping units, reducing transportation costs by 30% compared to non-modular models . On-site assembly takes 10–14 days with a team of 4–6 technicians, and all components are designed for easy handling with standard construction equipment. The dredger’s fuel-efficient engine configuration—paired with an intelligent power management system—optimizes fuel consumption based on load, reducing operational costs by 15–20% over the equipment’s lifecycle.(18 Inch Cutter Suction Dredger Premium)
4.A comprehensive spare parts package is included with each unit, and regional warehouses in Singapore, Dubai, Houston, and Rotterdam ensure quick access to replacement components. The dredger’s standardized design means that 90% of parts are interchangeable across our product line, simplifying inventory management for contractors with multiple dredging vessels .(18 Inch Cutter Suction Dredger)
Versatile Application Scenarios (18 Inch Cutter Suction Dredger Premium)
The 18 inch cutter suction dredger is engineered to excel in a wide range of large-scale projects, addressing the diverse needs of global industries:
1. Port & Harbor Construction & Maintenance
Ideal for deepening berths, approach channels, and turning basins to accommodate large vessels (up to Panamax class), the dredger’s 18m maximum dredging depth and high production capacity make it a cornerstone of port expansion projects . Recent deployments include the expansion of Lagos Port (Nigeria) and Mombasa Port (Kenya), where the dredger maintained navigation depths of 15m while processing 650,000+ cubic meters of sediment in 90 days . It is also used for regular port maintenance, removing accumulated silt and debris to ensure safe vessel navigation.(18 Inch Cutter Suction Dredger Premium)
2. Coastal Land Reclamation
A key tool for coastal development, the 18 inch dredger is used to pump-fill large areas for industrial parks, residential complexes, and beach nourishment . In Dubai’s Jumeirah Beach expansion project, three units worked in tandem to reclaim 2.3 million cubic meters of land, creating 1.2km of new coastline. The dredger’s long discharge distance (up to 4,000m with boosters) eliminates the need for multiple intermediate pumping stations, reducing project complexity and costs.(18 Inch Cutter Suction Dredger Premium)
3. Sand & Gravel Mining
For large-scale construction material extraction, the dredger efficiently extracts sand and gravel from riverbeds, lakes, and coastal areas—processing up to 700 m³/h of material . It is equipped with a gravel separator that removes oversized particles (＞125mm) to protect the pump and pipeline, ensuring continuous operation. In Malaysia’s Pahang River sand mining project, the dredger increased production by 40% compared to older equipment, supplying high-quality construction sand to major infrastructure projects in Kuala Lumpur.(18 Inch Cutter Suction Dredger Premium)
1. River & Reservoir Desilting
To restore water storage capacity and prevent flooding, the 18 inch dredger is used for large-scale reservoir and river desilting . In China’s Yellow River tributary desilting project, the dredger removed 1.8 million cubic meters of sediment from a 30km stretch, increasing flood storage capacity by 25% and improving water quality for 500,000 downstream residents. Its ability to operate in shallow water (minimum depth 2.0m) makes it suitable for river sections that larger dredgers cannot access.(18 Inch Cutter Suction Dredger Premium)
2. Environmental Dredging & Ecological Restoration
In sensitive environments, the dredger’s low-impact design and turbidity control systems make it ideal for removing polluted sediment from lakes, estuaries, and industrial waterways . In Thailand’s Chao Phraya River restoration project, the dredger removed 800,000 m³ of contaminated sediment, reducing heavy metal concentrations by 60% and restoring aquatic biodiversity. It is also used for wetland restoration, creating natural habitats by carefully shaping sediment deposits.
3.Optional Upgrades & Customization
To meet specific project requirements, the 18 inch cutter suction dredger offers a range of optional upgrades and customization options:
- Submersible Booster Pump: Extends maximum dredging depth to 25m and discharge distance to 4,000m
- GPS/DGPS Dynamic Positioning System: Enables semi-autonomous operation with ±0.5m positioning accuracy
- Turbidity Curtain & Sediment Classification System: For environmental dredging projects
- Deck Crane (5t Capacity): Facilitates pipeline handling and on-site maintenance
- Slurry Concentration & Flow Monitoring System: Real-time production tracking and data logging
- Explosion-Proof Electrical System: For operations in hazardous environments (e.g., oil refinery waterways)
- Heated Control Cabin: For polar or high-altitude operations (temperature range: -20°C to +45°C)
- Spare Parts Kit (Extended): Includes critical components for 2,000 hours of operation
- On-Site Training & Technical Support: Customized training programs for operators and maintenance staff
Quality Certification & After-Sales Service
1. International Certifications
- Manufactured under ISO 9001:2015 quality management system and ISO 14001:2015 environmental management system
- Compliant with CE, BV, RINA, CCS, and ABS classification society standards
- Meets IMO MARPOL environmental regulations and DIN EN ISO 8384:2020 dredging equipment safety standards
- Certified for operation in EU, US, African, and Southeast Asian markets
2. Comprehensive Warranty & Support
- 2-year warranty on all mechanical and electrical components (extended to 3 years with premium service package)
- Lifetime technical support via 24/7 hotline, video conferencing, and on-site assistance
- Regional service centers in 12 countries, with response times of 48–72 hours for on-site support
- Regular maintenance reminders and performance audits to optimize equipment efficiency
- Access to online training resources and technical documentation via a secure customer portal
3. Global Project Support
Our team of experienced dredging engineers provides end-to-end project support, including:
- Pre-sales site surveys and technical feasibility studies
- Customized equipment configuration based on project requirements
- Factory acceptance testing (FAT) with customer 见证
- On-site installation, commissioning, and operator training
- Post-project performance evaluation and optimization recommendations
Global Project Track Record
With over 200 units deployed worldwide, our 18 inch cutter suction dredgers have proven their reliability in some of the most challenging projects:
- Port Expansion, Nigeria: Deployed 3 units for Lagos Port deepening project (2024), processing 1.5 million m³ of sediment in 120 days
- Land Reclamation, UAE: 5 dredgers used for Dubai’s coastal development, reclaiming 3.2 million m³ of land
- Sand Mining, Malaysia: 12 units operating in Pahang River, supplying 2.8 million m³ of construction sand annually
- River Desilting, China: 4 dredgers deployed for Yellow River tributary restoration, increasing flood storage capacity by 25%
- Environmental Dredging, Thailand: 2 units used for Chao Phraya River pollution removal, improving water quality for 500,000 residents
These projects demonstrate the dredger’s ability to deliver consistent performance, meet tight deadlines, and adhere to strict environmental and safety standards—earning the trust of leading contractors and government agencies worldwide.(18 Inch Cutter Suction Dredger)
Why Choose Our 18 Inch Cutter Suction Dredger?
As a leading dredger manufacturer with 25+ years of experience, we combine industry-leading technology, global manufacturing expertise, and customer-centric service to deliver superior heavy-duty dredging solutions. Our 18 inch cutter suction dredger stands out for its:
1. Unrivaled Performance
With a solid production capacity of 700 m³/h and 18m dredging depth, it outperforms competitors in its class, enabling faster project completion and higher profitability .
2. Durability & Reliability
Built with premium materials and components, the dredger is designed for 24/7 continuous operation in extreme conditions, with a service life of 15+ years .
3. Global Compliance
Certified to meet international quality, safety, and environmental standards, it is eligible for projects in all major markets—eliminating regulatory barriers .
4. Customization & Flexibility
A wide range of optional upgrades and customization options allows the dredger to be tailored to specific project requirements, from deep-sea port construction to environmental restoration .
5. Global Support Network
With regional service centers, spare parts warehouses, and multilingual technical support, we ensure seamless operation and minimal downtime—no matter where your project is located .
6. Proven Track Record
Our dredgers have been successfully deployed in over 80 countries, with a customer satisfaction rate of 98%—a testament to our commitment to quality and performance.
Contact Us
Ready to discuss your large-scale dredging project? Our team of experienced engineers and sales experts is available to provide a customized solution, free quotation, and technical proposal within 24 hours.
18 Inch Cutter Suction Dredger (450mm) | Superior Heavy-Duty Dredging Equipment for Efficient Large-Scale Global Projects.
